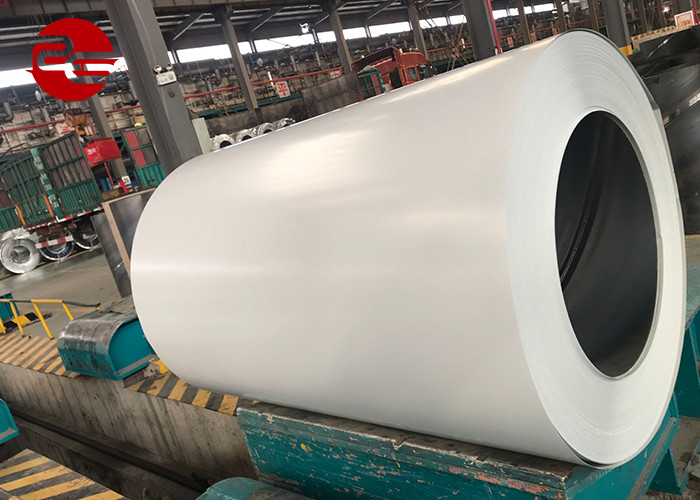

Prepainted PPGI PPGL DX51D Hot Dipped Galvanized Iron Sheet

Certification
China Rogo Industrial (Shanghai) Co., Ltd. certification
China Rogo Industrial (Shanghai) Co., Ltd. certification
Customer Reviews
Since our company has just been established, I want to purchase GI, but I don't know the products very well, so the image is an important model. The samples sent are free, which allows us to better understand the nature of the products we need.

—— Sharjeel Rehman

Because our government requires different payment methods, rogo can also accept our payment terms. It also has strict control on product quality and the quality is very good.

—— Harshi Panditharathne

I'm Online Chat Now

Prepainted PPGI PPGL DX51D Hot Dipped Galvanized Iron Sheet

Prepainted PPGI PPGL DX51D Hot Dipped Galvanized Iron Sheet
Prepainted PPGI PPGL DX51D Hot Dipped Galvanized Iron Sheet
Prepainted PPGI PPGL DX51D Hot Dipped Galvanized Iron Sheet Prepainted PPGI PPGL DX51D Hot Dipped Galvanized Iron Sheet

Large Image :  Prepainted PPGI PPGL DX51D Hot Dipped Galvanized Iron Sheet

Product Details:
Place of Origin: CHINA
Brand Name: ROGOSTEEL
Certification: ISO9001, ISO14001, OHSAS18001
Model Number: SGCC, SPCC, DC51D, SGHC, A653
Payment & Shipping Terms:
Minimum Order Quantity: 25T
Packaging Details: 2-layer anti-rust paper & waterproof paper; 1-layer PVC plastic board;
Delivery Time: 30DAY
Payment Terms: TT/LC
Supply Ability: 1400000MT per year

Prepainted PPGI PPGL DX51D Hot Dipped Galvanized Iron Sheet

Description
Items Name: Pre-painted Galvanized Coil Steel Zinc Coating: 40g
Size: 0.2*1250mm Thickness: 0.2-0.2mm
Width: 650-1250mm Surface Treatment: Galvanized,Coated,color Coated/galvanized,Printing / Filmed / Matte / Wrinkled,Skin Pass/Non Skin Pass
Technique: Hot Dipped,Galvanized Steel / Galvalume Steel /Aluminum Color: RAL Color,all Ral Colour Color Coated Steel Coil/ppgi Steel Coil/ppgi Coil
Grade: DX51D,SGCC,galvanized Sheet
High Light:

Prepainted PPGI PPGL

,

DX51D Galvanized Iron Sheet

,

Chemical Degreasing PPGI PPGL

prepainted galvanized iron sheet/galvanized and prepainted steel coils ppgi/ppgl coil



Color coated coils are are based on hot-dip galvanized sheets,hot-dip galvanized sheets, electro-galvanized sheets, etc. After surface pretreatment (chemical degreasing and chemical conversion treatment), one or more layers of organic coatings are applied to the surface, and then The product is baked and cured. It is named after the colored steel coil coated with various organic coatings of different colors, referred to as color coated coil.


Products GI/GL PPGI/PPGL CR


Corrugated Steel Sheet

Grade

SGCC, CGCC, SPCC, ST01Z, DX51D, A653



Origin

China(Mainland)



Certificate


ISO9001.ISO14001.OHSAS18001



Technique hot rolled/
cold rolled
pre-painted, hot rolled
/cold rolled
cold rolled

pre-painted,
hot rolled/cold rolled



Thickness

0.126mm-2.0mm


Width

660mm-1250mm.


Tolerance

thickness+/-0.01mm


T Bending
(top/back)
  3T/4T
Anti-MEK Wiping

100times


Zinc coating

275g /m2


Color options

RAL Color System or as per buyer’s color sample.








Prepainted PPGI PPGL DX51D Hot Dipped Galvanized Iron Sheet 0

  • Width:660-1250mm, thickness:0.126-3.5mm, coating mass:40-275g/m2, coating thickness:Top 15-40µm Back 5-20µm
  • Well adhering to the base plate, the coating are easy to process and form, good weather resistance and outdoor stability. When used in general environments, the anti-corrosion effect may last for 10 years, depending on the requirements for the coating mass. Products of various bright colors are provided for selection.
  • Scopes of application: building roofing, outdoor wall panel, decorative sheet, roller shutter door, steel door, household appliance, etc.

Prepainted PPGI PPGL DX51D Hot Dipped Galvanized Iron Sheet 1

 Prepainted PPGI PPGL DX51D Hot Dipped Galvanized Iron Sheet 2
Prepainted PPGI PPGL DX51D Hot Dipped Galvanized Iron Sheet 3Prepainted PPGI PPGL DX51D Hot Dipped Galvanized Iron Sheet 4
Prepainted PPGI PPGL DX51D Hot Dipped Galvanized Iron Sheet 5
Prepainted PPGI PPGL DX51D Hot Dipped Galvanized Iron Sheet 6
Prepainted PPGI PPGL DX51D Hot Dipped Galvanized Iron Sheet 7Prepainted PPGI PPGL DX51D Hot Dipped Galvanized Iron Sheet 8

1.Hey, you are trading company or factory?
Dear sir,We are Rogo industrial(shanghai) Co.,Ltd. Under the experienced group company J.X.Y

Group. Our mill is in Boxing Shandong the most developed area of producing CRC/GI/PPGI/GL/PPGL.
2.What’s the capacity of your mill?
We own 7 production lines for GI/GL/PPGI/PPGL with the capacity of 1480000MT per year.
3.The size of goods you can produce?

For the size:
Thickness: 0.2-2.0mm

width: 610-1250mm

Zinc coating:35-275g

Painting: 15-20um/5-10um or as you required

Coil weight:3-5MT

CR/Corrugated coil/ sheet:Any size you want
